YDF series induced fans

Quiet and low noise

Noise-cancelling box

high air volume

Centrifugal high pressure fan

metal shell

High-quality steel plate without welding

small volume

Easy installation and wide application

Processing technology

Fan impeller and casing are made of high-quality steel plate

Worry-free after-sales

One year return, lifetime warranty
Performance parameters

model	Diameter of impeller mm	Air volume m ³ /h	nozzle formation diameter digital	range m	power w	power supply PV/Hz	noise dB(A)	weight kg
YDF-B-No2.5	250	630-850	80*3	10	120	1/220/50	58	28
YDF-B-No3	300	985-1350	80*3	15	300	1/220/50	60	35

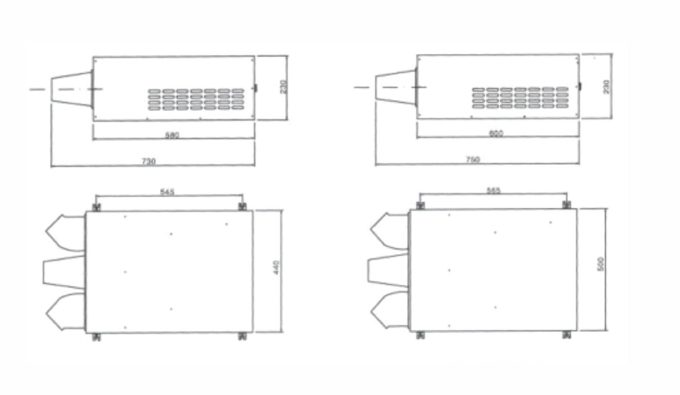

Dimensions

Performance parameters

The number of induced fans required for the calculation of the number of induced fans is based on the consideration of ventilation methods (mechanical exhaust air supply, natural air intake and mechanical exhaust air), the presence or absence of partition walls, and the shape of the space. The area calculation can be determined by referring to the following table:

serial number	situation of use	Air supply and exhaust method	quantity
1	Occasions where the space is irregular, there are many partition walls and obstacles, and the airflow is stagnant	Natural air intake, mechanical exhaust	100m ² / tower
2	There are many partition walls and obstacles, but the ventilation and exhaust air flow is easy to form	Natural air intake, mechanical exhaust Mechanical intake, mechanical exhaust	150m ² / tower
3	There are few partition walls and obstacles, and the ventilation and exhaust air flow is ideal	Mechanical intake, mechanical exhaust	200m ² / tower
4	No obstacles, only low parking	Mechanical intake, mechanical exhaust	250m ² / Desk
