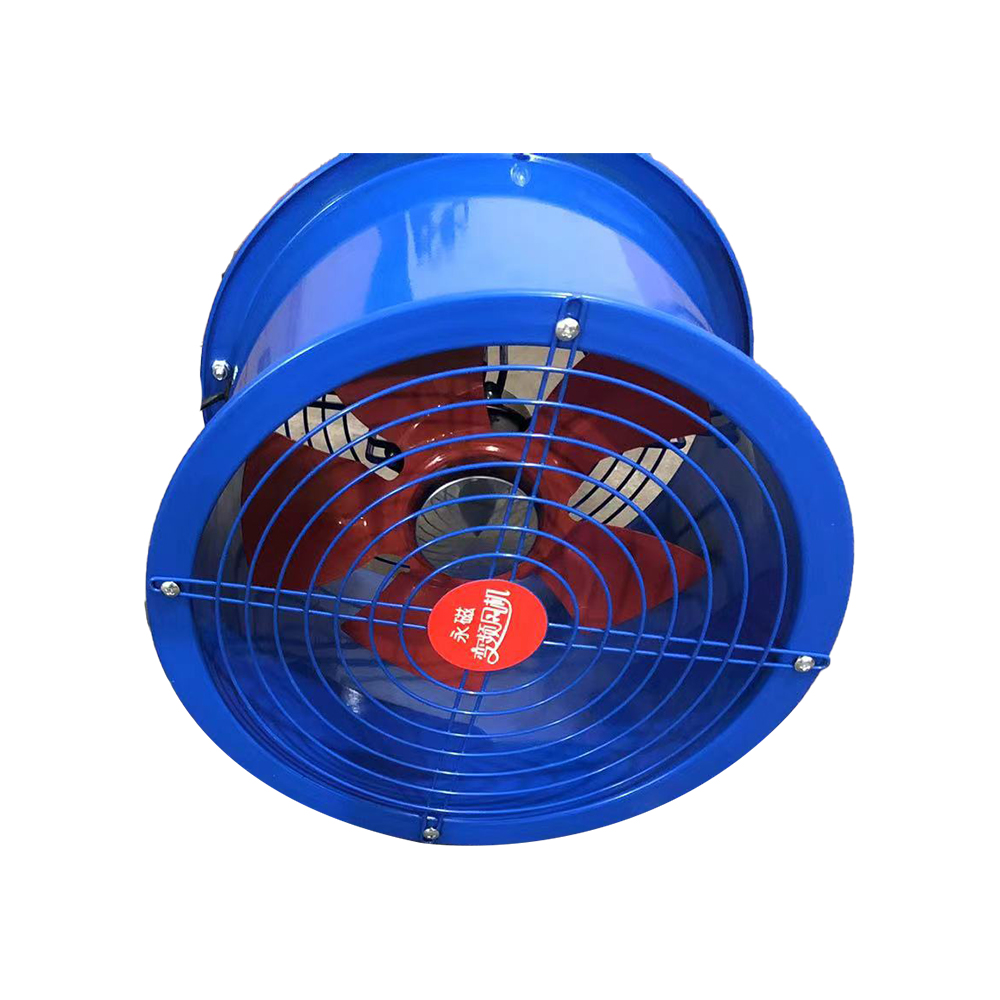

Infinitely variable speed cylinders

The main technical parameters

data item model	Installation size mm	input power w	Rated voltage V (wide voltage)	Rotating speed r/min	Full pressure Pa	flow /min	noise (db)
GY-200	260-270	14-3ow	160-220	8oo-2800	25-180	100-150o	62
GY-250	310-320	19-36w	160-220	8oo-280o	30-200	1o0-2100	72
GY-3oo	360-270	25-6ow	160-220	8oo-280o	35-230	1oo-3ooo	74
GY-350	410-420	35-8ow	160-220	8oo-280o	40-280	1oo-5500	78
FY-40o	470-480	4o-9ow	160-220	8oo-280o	5o-320	100-8500	83

installation and use

1. The pipeline type is mainly used for long-distance ventilation. The joints with the pipeline are fastened with bolts, and the joint surface is sealed with cardboard or other sealing materials:

2. Wall type is mainly used for indoor exhaust, ventilation and so on. Generally installed and fixed on the wall, pay attention to the direction when installing, that is, one end of the installed grille should face the outdoors.

3. The post type is mainly used for air supply and smoke exhaust in the workplace.
1. Supporting foot type: The angle between the axis and the horizontal plane can be adjusted to adapt to the wind blowing. When adjusting, loosen the adjusting nuts at both ends of the barrel, press the whole machine to reach the ideal working angle, and then tighten the nuts.

2. Rotary type: The height of the whole machine can be adjusted according to the needs, and each of them can be adjusted by rotating parallel to the horizontal plane. When adjusting, loosen the top tightening screw, and then turn the big bolt to adjust the height. Rotate the whole machine to adjust the rotation. , and tighten the bolts.

SF series products are mainly used in the ventilation and air-conditioning systems of chemical, light industry, food, medicine, metallurgy and other enterprises and various power generation buildings. It is suitable for general environment, no corrosive gas and obvious dust, and the temperature should not exceed 45C.
